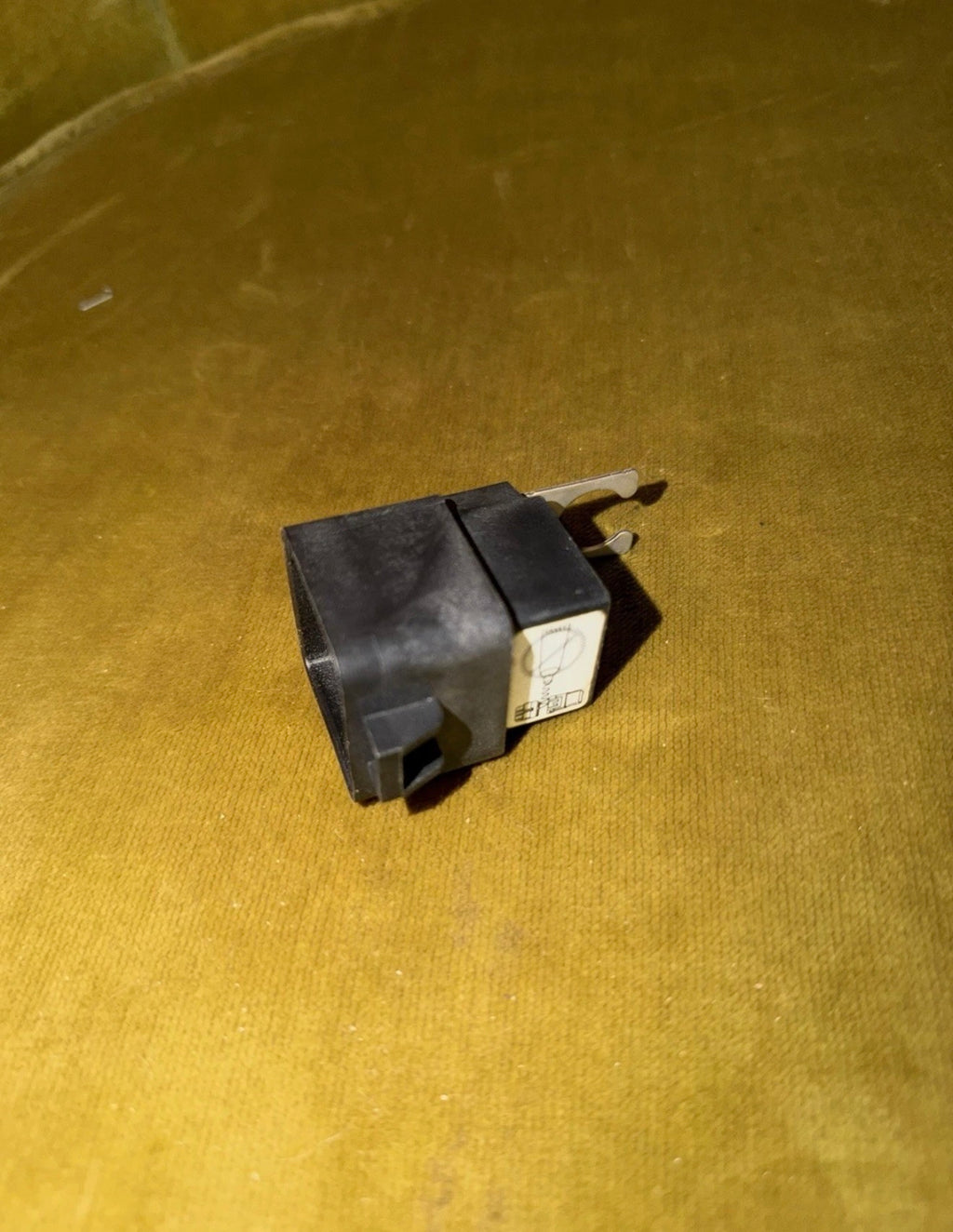

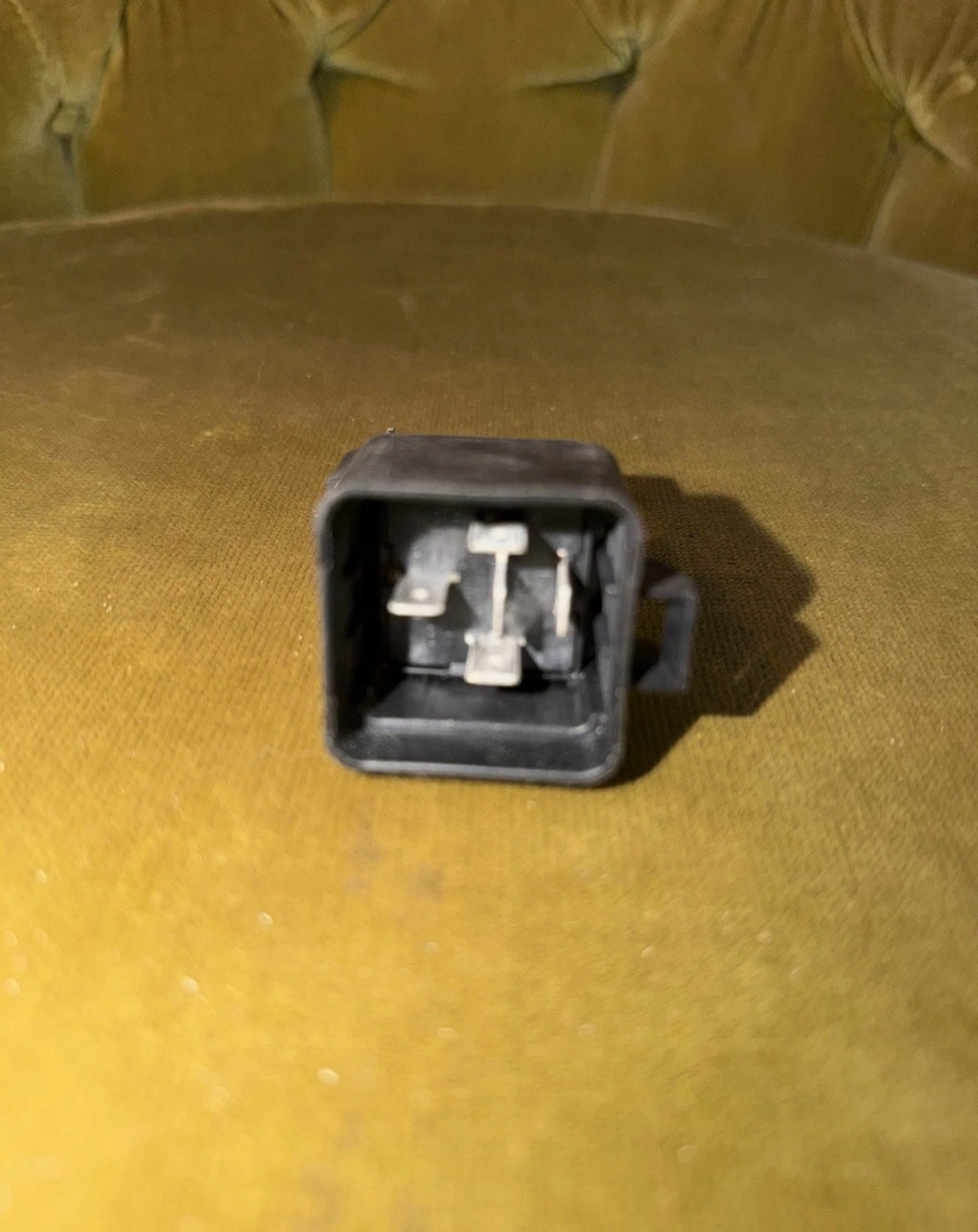

3 Pin Starter Relay

Restore your engine's ignition reliability with this **High-Performance 3-Pin Starter Relay Solenoid**. Designed to handle the high-amperage demands of marine starting systems, this relay is the perfect replacement for worn-out solenoids that cause "clicking" sounds or intermittent starting issues in outboards, PWCs, and small engines.
### **The Role of the 3-Pin Starter Relay**
In a standard marine electrical system, the 3-pin relay acts as a heavy-duty switch between your battery and the starter motor. When you turn the key, a low-current signal activates the internal copper coils, closing the high-current circuit to crank the engine. Because it is a 3-pin configuration, it typically utilizes a **common ground through the mounting bracket** or a dedicated signal pin, simplifying your wiring harness.
### **Technical Specifications & Construction**
* **Configuration:** 3-Pin (High-current Battery Post, High-current Starter Post, and Small Ignition Trigger Spade/Post).
* **Voltage:** 12V DC.
* **Duty Cycle:** Intermittent (Designed for starting, not continuous run).
* **Housing:** Impact-resistant, moisture-sealed composite body to prevent internal corrosion.
* **Contacts:** High-conductivity copper terminals for maximum current flow and minimal voltage drop.
### **Compatibility and Versatility**
This 3-pin relay is a highly versatile component commonly found in:
* **Marine Engines:** Many older 2-stroke and 4-stroke outboard motors (Yamaha, Mercury, Johnson/Evinrude).
* **Power Sports:** ATVs, UTVs, and Personal Watercraft (Jet Skis).
* **Lawn & Garden:** High-end riding mowers and tractors requiring a 3-terminal solenoid setup.
### **Symptoms of a Failing Starter Relay**
If you are experiencing any of the following, it is likely time to replace your relay:
1. **The "Single Click":** You hear one sharp click when turning the key, but the starter doesn't spin.
2. **Rapid Chatters:** The relay clicks repeatedly and fast, indicating a failure to maintain the internal connection.
3. **Intermittent Starting:** The engine only cranks every third or fourth try.
4. **Starter Stays On:** The relay "welds" shut, causing the starter to keep spinning even after the engine starts (Warning: Disconnect battery immediately if this occurs).
### **Installation Best Practices**
1. **Safety First:** Always disconnect the negative battery terminal before beginning installation to prevent accidental shorts.
2. **Clean Connections:** Ensure all ring terminals are free of corrosion. Use a wire brush or sandpaper to expose shiny metal for the best conductivity.
3. **Polarity Check:** Ensure the "Battery" lead and "Starter" lead are connected to their respective posts as marked on the relay housing.
