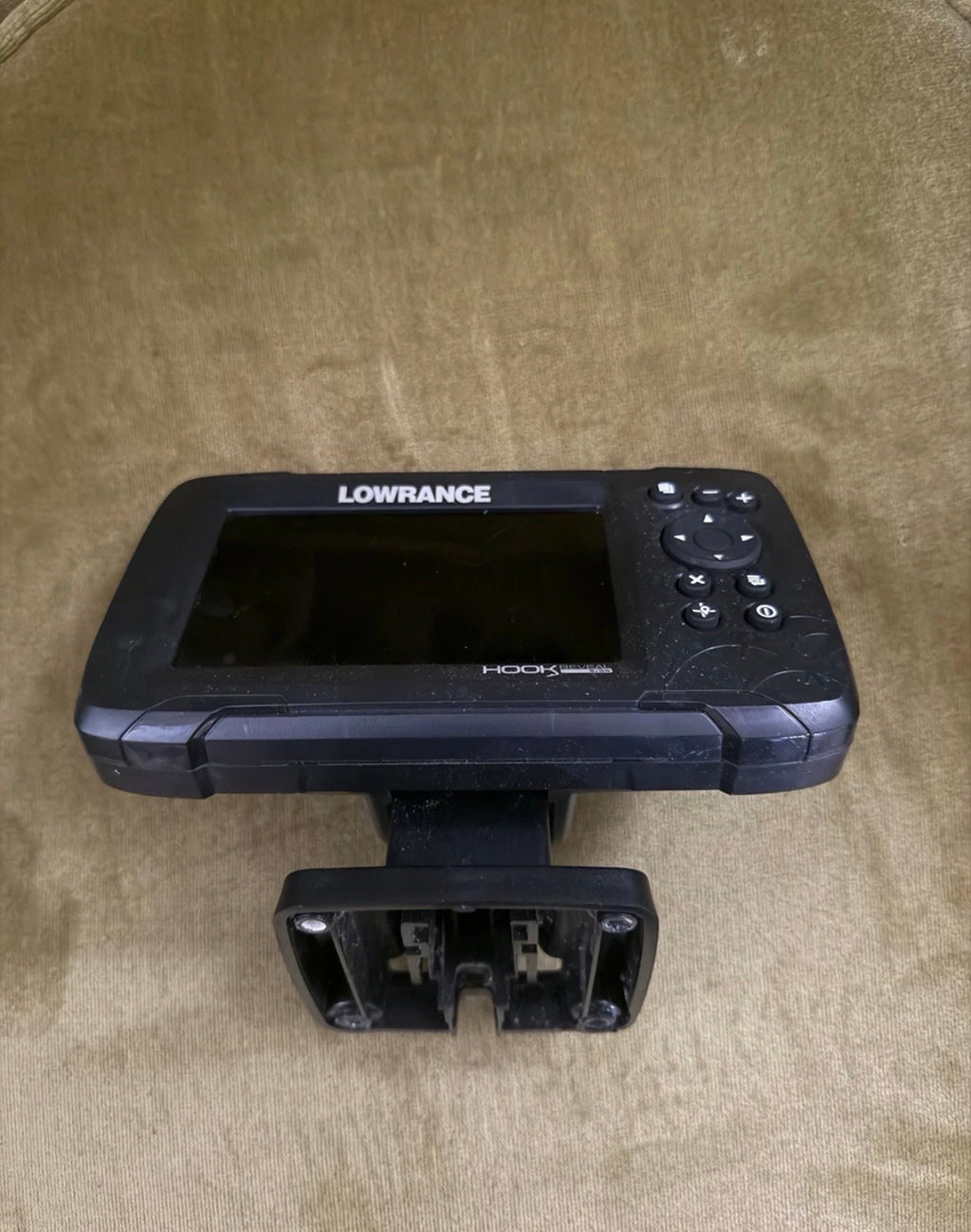

Lowrance hook 5x55

The **Lowrance Hook 5x** is a high-performance, 5-inch standalone fishfinder designed for anglers who want professional-grade sonar features—specifically **CHIRP Sonar** and **DownScan Imaging™**—without the need for a GPS chartplotter.
The "5x" designation in the Lowrance lineup signifies that it is a **sonar-only unit**. While it does not support navigation charts or mapping, it provides some of the clearest underwater imagery in its class by combining two distinct sonar technologies into one display.
### **Key Sonar Technologies**
* **CHIRP Sonar:** Unlike traditional single-frequency sonar, CHIRP sweeps a range of frequencies. This results in superior target separation, allowing you to distinguish individual baitfish within a school or see fish holding tight to bottom structure.
* **DownScan Imaging™:** This provides a nearly photographic view of what is directly beneath the boat. It is invaluable for identifying specific structures like submerged trees, brush piles, or old bridge pilings that might look like simple "blobs" on standard sonar.
* **DownScan Overlay™:** This unique Lowrance feature allows you to overlay the DownScan images onto the CHIRP sonar display. This gives you the "best of both worlds"—the clear target arches of CHIRP combined with the structural detail of DownScan.
### **Display and Interface**
* **5-Inch SolarMAX™ Screen:** The high-resolution color display is designed for visibility in bright sunlight and at wide angles.
* **Multi-Window Layouts:** You can choose from several pre-set page splits, such as viewing CHIRP sonar and DownScan side-by-side, or utilizing a three-panel view to monitor multiple frequencies at once.
* **One-Thumb Operation:** The menu system is simplified, allowing you to toggle through sensitivity, frequency, and zoom settings quickly using the directional pad.
### **Compatibility and "Head Unit Only" Notes**

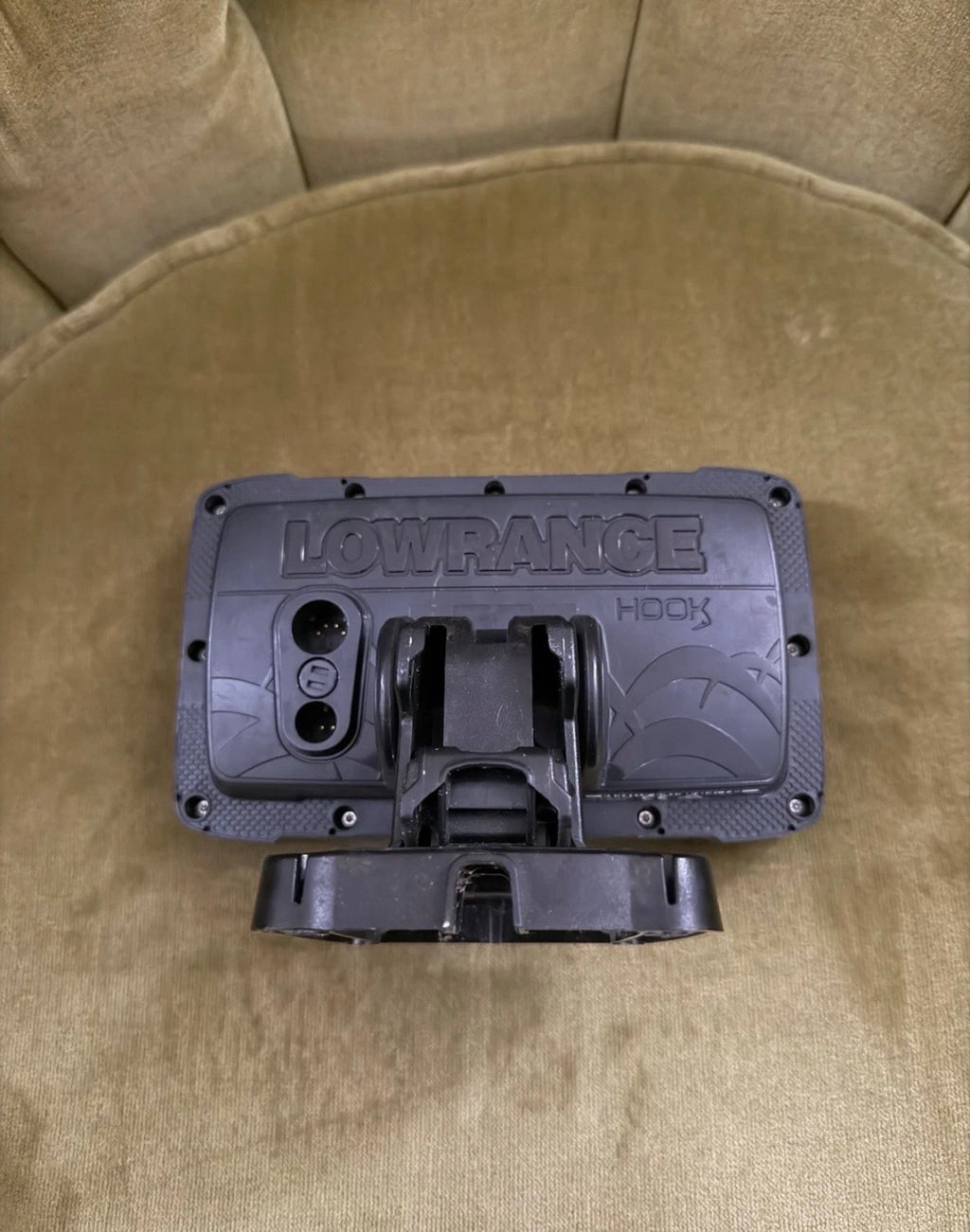

If you are looking for a replacement head unit, pay close attention to the connector type on the back:
* **Blue Connector (7-Pin):** Common on the original Hook 5x series. It typically uses the **HDI Skimmer®** transducer (83/200 455/800 kHz).
* **Black Connector (8-Pin):** Used on the newer **Hook Reveal 5x** models. These units are not cross-compatible with the older 7-pin cables without an adapter.
* **Mounting:** It uses the classic Lowrance quick-release tilt/swivel bracket, which makes it easy to remove for security or to switch between the bow and the console.
### **Market Value & Identification**
As a "head unit only" (no transducer or power cable), the value typically depends on the specific generation:
* **Hook 5x (Standard):** Generally valued between **$75 and $110** depending on screen condition and sun cover availability.
* **Hook Reveal 5x:** This newer version (which includes FishReveal technology) typically ranges from **$120 to $160**.
**Key Search Terms:** Lowrance Hook 5x Head Unit, Hook 5x Replacement Screen, 000-12650-001, Hook Reveal 5x Sonar, Lowrance HDI Transducer, 5-inch CHIRP Fishfinder, Standalone Marine Sonar.
